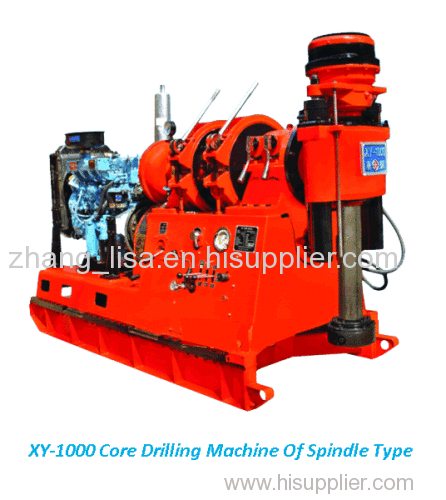

XY-1000 Core Drilling Machine Of Spindle Type

Payment Terms:	T/T,L/C,D/A
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: XY-1000

Packing: wooden case

Application: Others

Brand Name: GOLD

Means of Transport: Ocean,Air

Delivery Date: 2 weeks

Type: Drilling Rig

core drilling rig: spindle type drilling rig

It is suitable for drilling large dia. hole and small dia. hole core drilling with diamond bit and carbide bit.

APPLICATIONS AND FEATURES

XY-1000 spindle type of core drilling machine is brand new products which is developed and designed newly based on current thousand meters series of drilling machine.
It is suitable for drilling large dia. hole and small dia. hole core drilling with diamond bit and carbide bit, also suitable for engineering geology drilling, hydrogeology drilling, water well drilling and large dia. pile hole drilling. It has features of reasonable arrangement, good quality, light weight, big capability, wide performance and good exchangability etc.

Technical Specifications

Drilling depth (m)		1000
Spindle speeds (r/min)	forward	87; 160; 230; 270; 334; 500; 710; 1030
	reverse	72; 220
Max.toque of spindle (Nm)		4050
Spindle stroke (mm)		600
Spindle inner dia. (mm)		96
Spindle pull/push force(kg)		10000/7500
Hoist max. lifting force with single rope(㎏)		4500
Hoist lift speed with single rope (the third layer)(m/s)		0.69; 1.27; 1.81; 2.64
Hoist wire rope dia. and capacity (m)		Ф17.5(170kg/cm2)wire rope capacity 110 m
		Ф18.5(170kg/cm2)wire rope capacity 90 m
Workable speed of water brake (r/min)		700- 1800
Balance speed of water brake(single rope)/balance load(single rope)		3-8m/s/45kN
Hydraulic system		(32+12)L/min twin-gear pump,pressure:80kg/cm2
Driving stem		Hexagonal kelly Ф89×79×6000 mm
Power unit	Electric motor	Y225-4 37Kw 1480r/min
	Diesel engine	R4105G54 42Kw 1500r/min
Weight (excluding power unit)(kg)		2180
Max. detachable subassembly (kg)		320
Overal dimesion (L×W×H)(mm)		2920×1100×1840
